Operating Principle of

Hänel Lockomat®

Secure Automated Storage Technology

The Hänel Lockomat® is a high-security vertical carousel storage system engineered for industries where precision and safety are paramount. Designed specifically for storing items that appear identical but have critical differences—such as chemicals, pharmaceuticals, or sensitive banking materials—this system prevents costly mix-ups and ensures accurate retrieval. Built on the reliable Ferris wheel principle with advanced access controls and tracking capabilities, the Lockomat® delivers up to 85% space savings while providing maximum security and traceability. Essential for chemical plants, pharmaceutical facilities, banks, and any environment where material identification and controlled access are critical for safety and compliance.

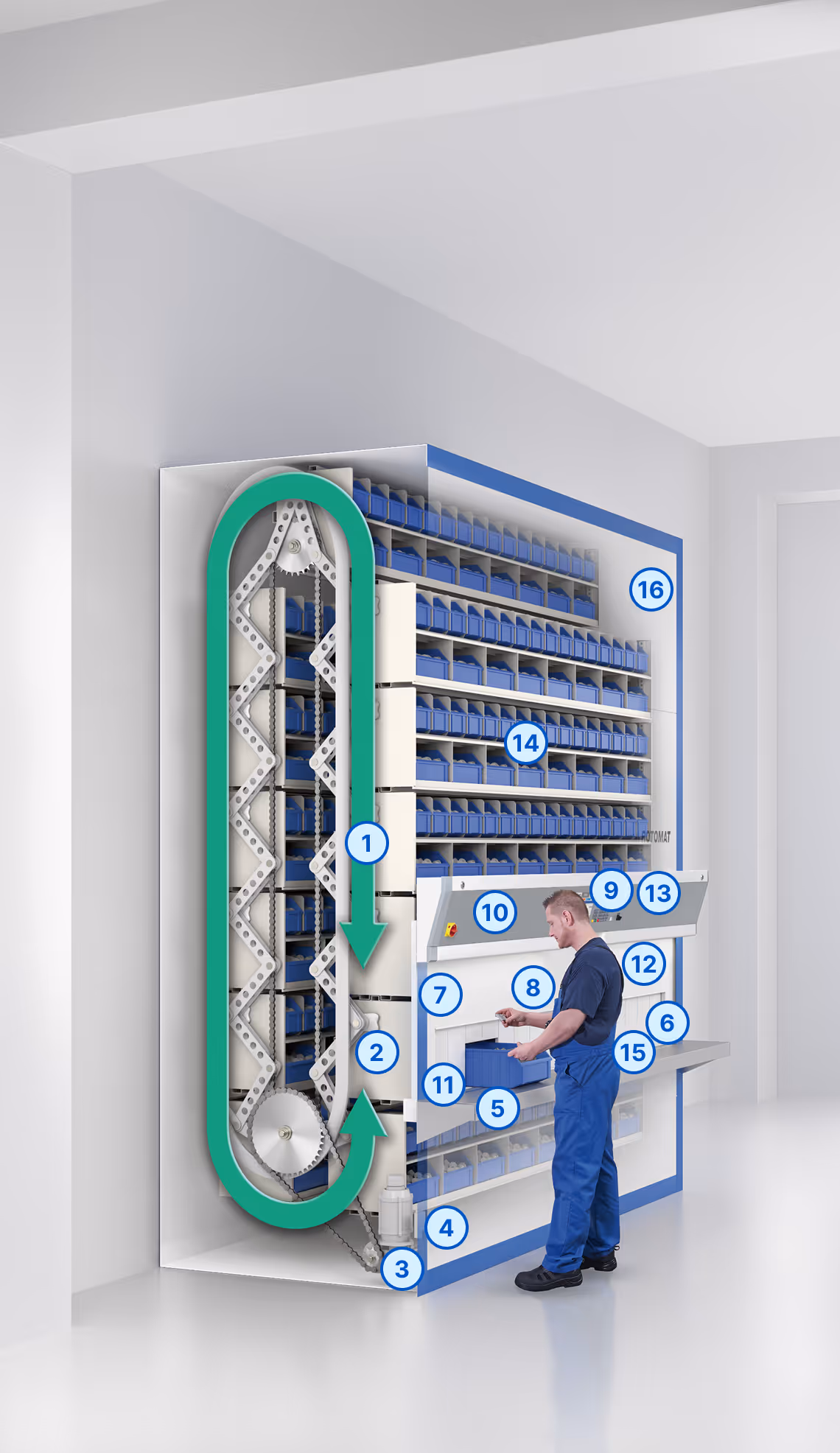

Hänel Lockomat principle diagram showing internal components
1

The principle of the Hänel Lockomat®

Safe and secure storage with vertical carousel technology – simply brilliant

2

Carrier suspension

using 4-point sliding carriage principle directly on the rotation mechanism

3

Internal drive system

optional also with 2 motors

4

Soft start

with frequency converter

5

Access point with V2A work counter

wear-resistant

6

Ergonomic safety threshold switch

optimal personal protection

7

Light barrier curtains

compliant with DIN EN 15095

8

Automatic or manually operated compartment doors

prevent unauthorized access

9

Hänel microprocessor controllers

and Hänel software solutions

10

Wiring box

with centrally housed electrical components

11

Multifunction positioning system

for accurate positioning of shelf levels

12

Lockable sliding doors

to protect the files and documents

13

Hänel EcoLoad®

for balanced and efficient load distribution

14

Multifunction carriers

with variable dividers and inserts

15

Compartment indicators

for error-free retrieval

16

Environmentally friendly powder-based finish

50% more abrasion-resistant

Hänel Lockomat Operating Principle
