Operating Principle of
Hänel Lean-Lift®
Intelligent Vertical Storage Technology

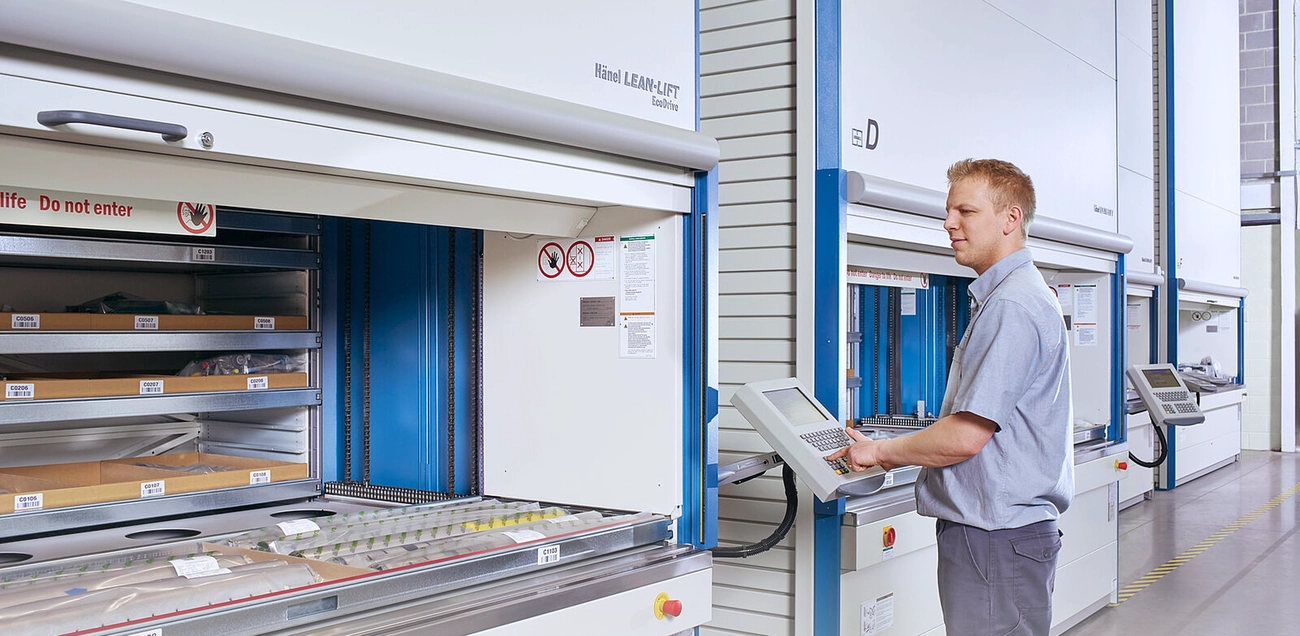

The Hänel Lean-Lift® is a vertical automated storage system designed to optimize space, improve efficiency, and protect stored goods. Using a computer-controlled extractor, it retrieves items stored in height-optimized containers and delivers them at an ergonomic height. Ideal for diverse industries—from medical and electronics to automotive and logistics—it offers secure, space-saving storage for tools, components, and inventory.

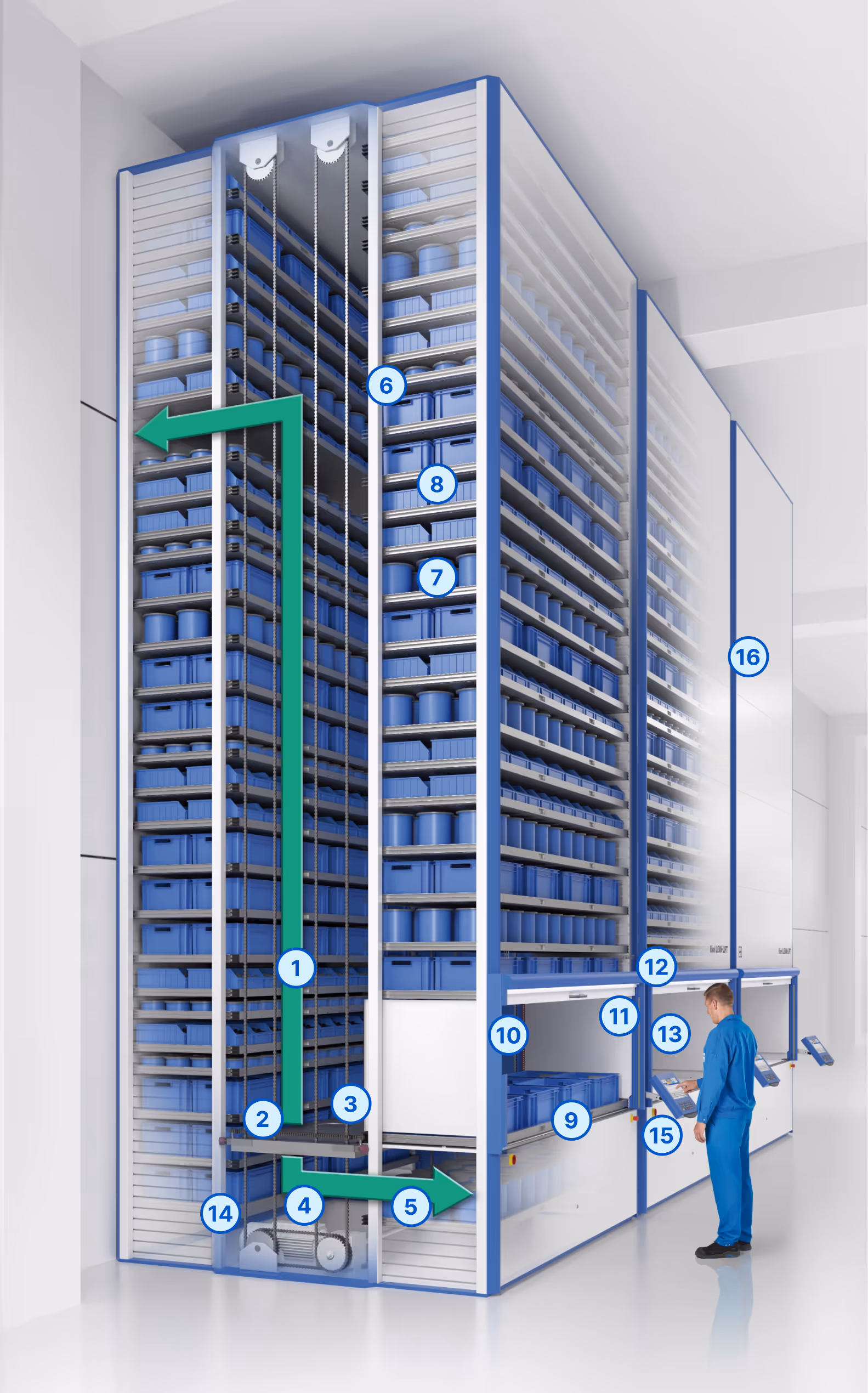

The Hänel Lean-Lift® principle
Vertical technology – simply brilliant.
The vertical carriage
called the 'extractor' stores and retrieves the goods.
Four-chain system
To ensure maximum stability of the extractor.
Hänel's high-performance drive
for fast traversing speeds.
Frequency converter with Hänel EcoDrive®
Soft start control and energy recovery
Integrated slot profile
for height-optimized assignment of the containers
Storage location
with stationary goods
Container
tray for holding and transporting the goods
Access point
at ergonomic retrieval height
Height measurement light barriers
for precisely determining the article heights
Light barrier curtains
compliant with DIN EN 15095
Lockable sliding doors
for protection of inventory
Hänel microprocessor controller and Hänel software solutions
Maintenance access
conveniently at the side
Wiring box
The electronics are neatly housed
Environmentally friendly powder coating
50 % more abrasion-resistant

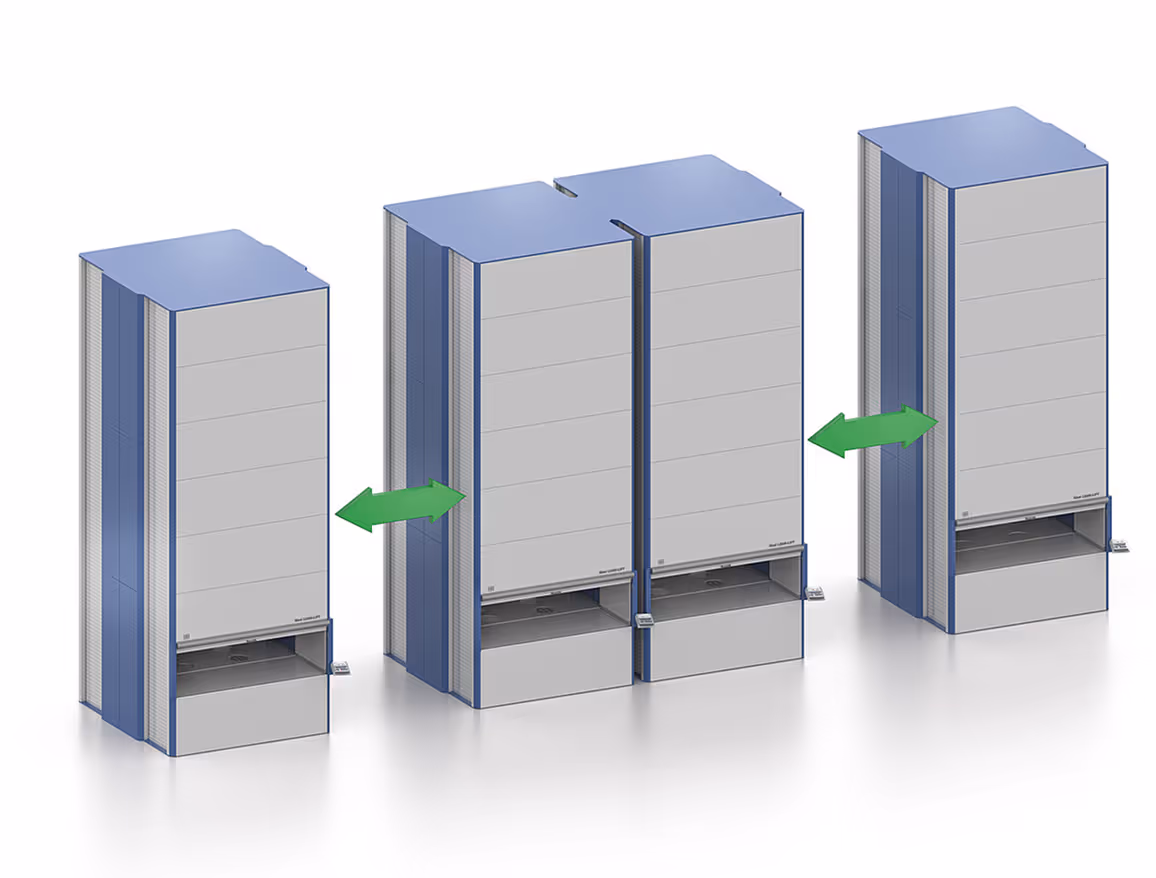

Horizontal Expansion
Start with one Lean-Lift® and add units as needed. Each unit integrates seamlessly, creating a continuous storage wall that maximizes floor space while minimizing investment.
- Modular growth without operational disruption
- Maximum space efficiency
- Controlled, scalable investment

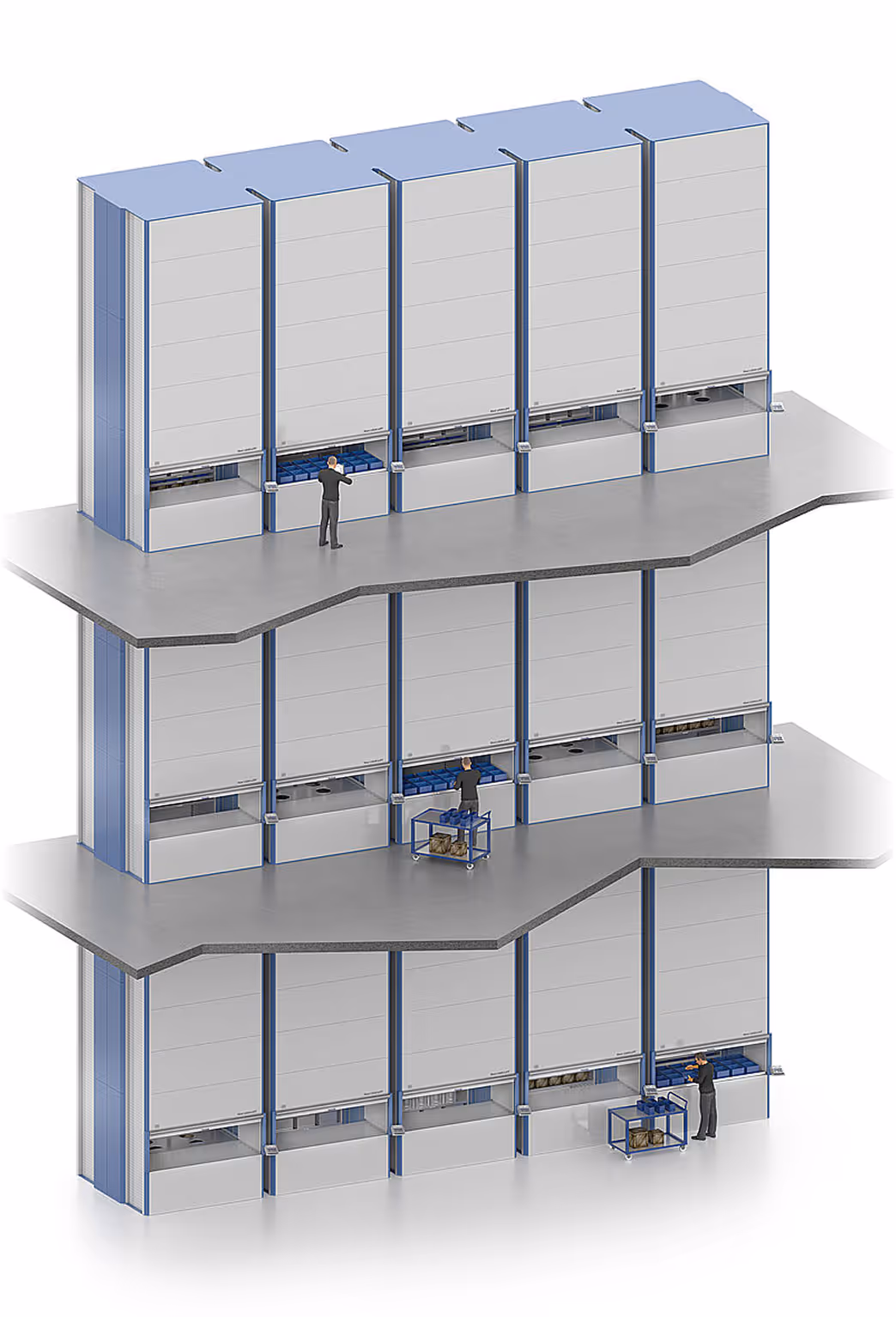

Multi-Level Integration
Span multiple floors with access points at each level. This vertical solution delivers maximum storage density while maintaining ergonomic access throughout your facility.
- Multi-floor access points for efficient workflow
- Full building height utilization
- Ergonomic platforms at optimal working heights
